Aquascape Pondless Waterfall Pump Vaults

Aquascape "Pondless Waterfall" System:
The Aquascape "Pondless Waterfall" system starts with a hidden lined water reservoir constructed from AquaBlox and pond liner. A pump, housed within a Pondless Waterfall pump vault for easy access, is then used to pump water from the reservoir to a Waterfall Spillway. The Waterfall Spillway is installed atop a watercourse or rockway, allowing the water to return back to the underground reservoir. This closed system creates sounds and ambience within the garden, and is especially suited to gardens where space is limited or where the landscape is already to a watercourse.

Aquascape Pondless Waterfall Pump Vaults:

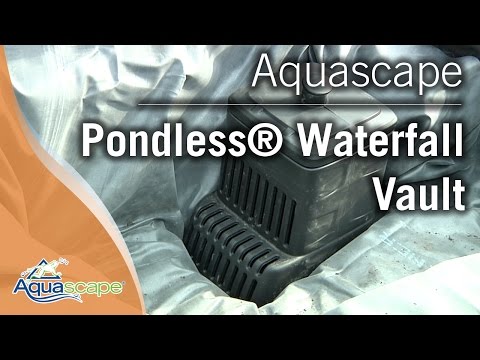

The Aquascape Pondless Waterfall pump vaults are a simple flooded chamber, designed to be installed within a lined underground reservoir to house the pump that feeds a waterfall or watercourse. These pump vaults not only house the pump, but also provide a way of easily accessing it for routine cleaning, maintenance or troubleshooting.

The heavy-duty polyethylene construction provides excellent structural strength and rigidity to these pump vaults, preventing warping or bowing caused by changing weather conditions and temperatures. They also feature a 3" cut-out in the side of the vault to allow pipework to be

The removable lid allows easy access to the pump vault, featuring a wide opening that measures 406mm x 406mm. This lid can be covered with stones or gravel, allowing the vault to be easily camouflaged and leaving just the water level inspection port visible. This port enables a quick visual inspection of the inside of the vault and the internal water level without having to move the camouflaging stones.

The pump vault extensions simply slot on top of the pump vaults to increase their height. If the small AquaBlox pond crates are used then no extension is required, however if the large AquaBlox are used then this will require an extension.

For more information about installation please refer to the datasheet.


Guarantee 1 Year
Material Polyethylene
Maximum Flow Rate (H) 47000 l/h
Maximum Flow Rate (Min) 783 l/min
Aquascape Pondless Waterfall pump vault
Product Code: ASW1120
Length 584mm; Width 432mm; Height 648mm
Aquascape Pondless Waterfall pump vault extension
Product Code: ASW1122
Length 406mm; Width 406mm; Height 229mm
